BELT SCALE COMPONENTS

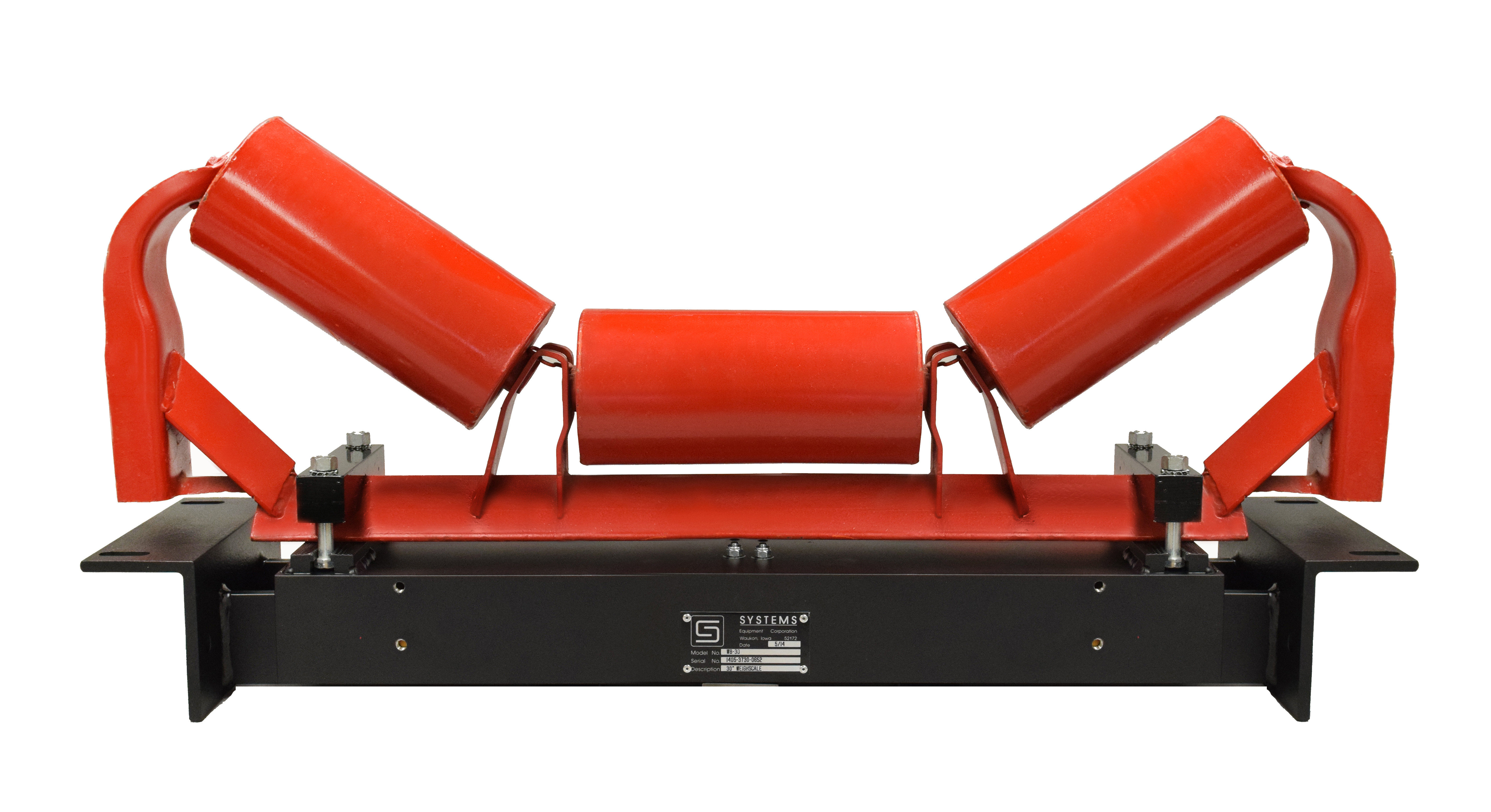

Single Idler Weighbridge
Belt Scale Component
This weigh scale was designed by SYSTEMS' engineering team to accurately weigh material carried on a belt conveyor under less than ideal, real life, operating conditions.
- High accuracy! To 1/4% over 10:1 operating range.
- Interchangeable, single low cost platform loadcell.
- Fall through frame design will not trap material.
- Design inherently ignores rotational error forces.
- Mounts to conveyor frame and wholly isolates side-to-side frame misalignment from loadcell, both at installation & during operation.

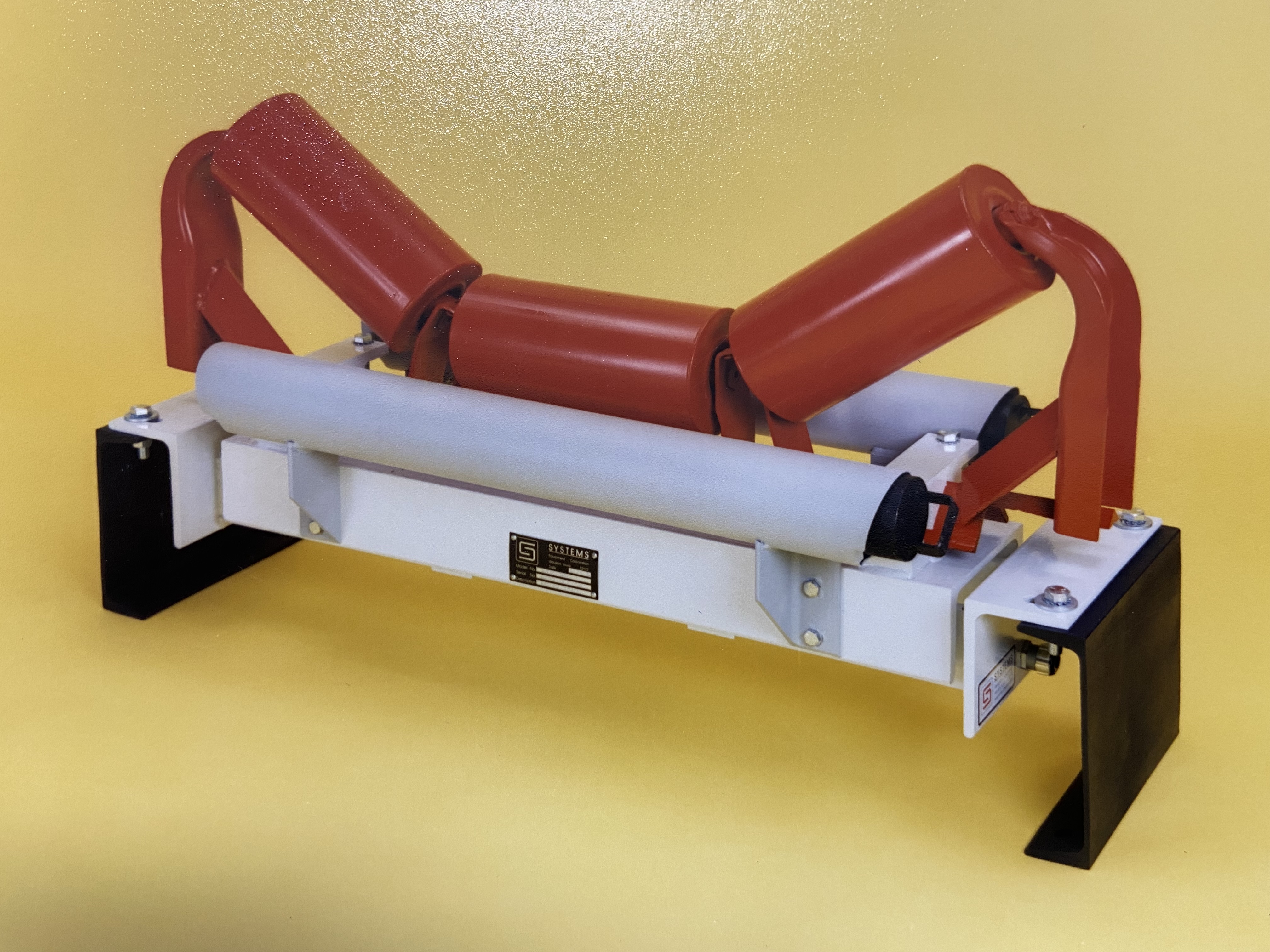

- Pictured with SYSTEMS’ WB-TW Manual Test Weight Assembly.
